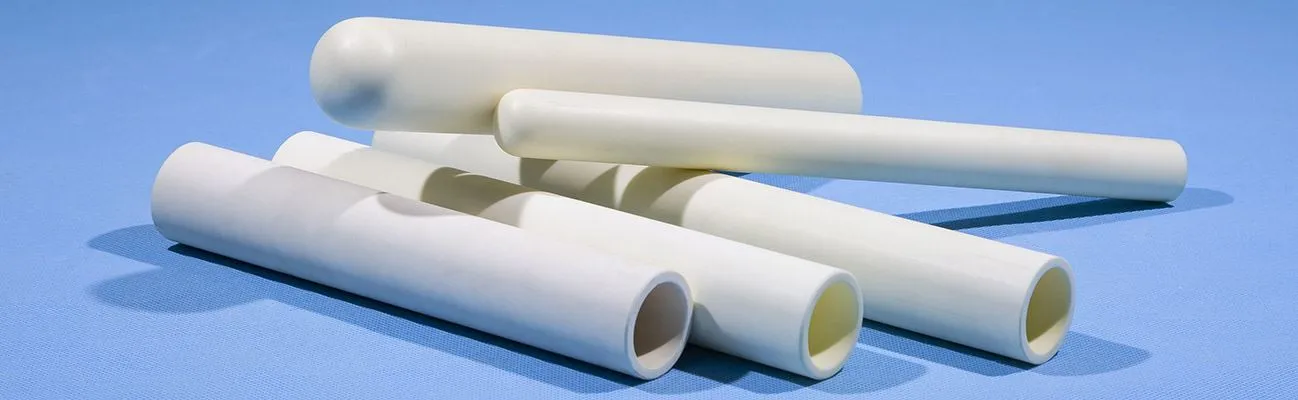

Alumina Tube Closed One End

Alumina tube closed one end is made of high-purity alumina ceramic, which is the most commonly used technical ceramic material and has excellent electrical insulation and cost advantages. The purity of alumina thermocouple protection tubes mainly includes 95%, 99.5% and 99.7%, the density is in the range of 3.65-3.90 g/cm3, and the maximum operating temperature can reach 1,500 - 1,800 degrees Celsius, the higher the alumina content, the higher the use temperature. Alumina closed end tubes are used as thermocouple protection tubes, mainly used for the protection of temperature measuring elements, isolating the temperature measuring elements from the outside world, reducing or preventing the elements from being corroded, oxidized or damaged by external substances during use. When in use, the temperature measuring element with good insulation protection is set in the alumina protection tube, and then the open end and the coupling head are glued and sealed together with high temperature cement. When measuring the temperature, insert the sealed end into the temperature measuring area, and avoid rapid cold and rapid heat during use, so as to avoid excessive damage to the protection tube.

The conventional size of thermocouple alumina sheath is from 5mm to 30mm in outer diameter, and the longest length is 1,800mm. It can also be made to 100mm in outer diameter and 2,500mm in length according to requirements. UNIPRETEC has a large amount of 95 and 99 alumina protection tube inventory, and we can also accept customized and small demand orders. In addition, if you have demand of thermocouple ceramic insulator sleeves, we can also provide them together, please contact us.

General Advantages

Technical Characteristics

∆ The above data is offered for reference and comparison only, exact data will vary depending on manufacturing method and part configuration.
